PowerFlex – Welding Machine – MMA-500i

480,000.00

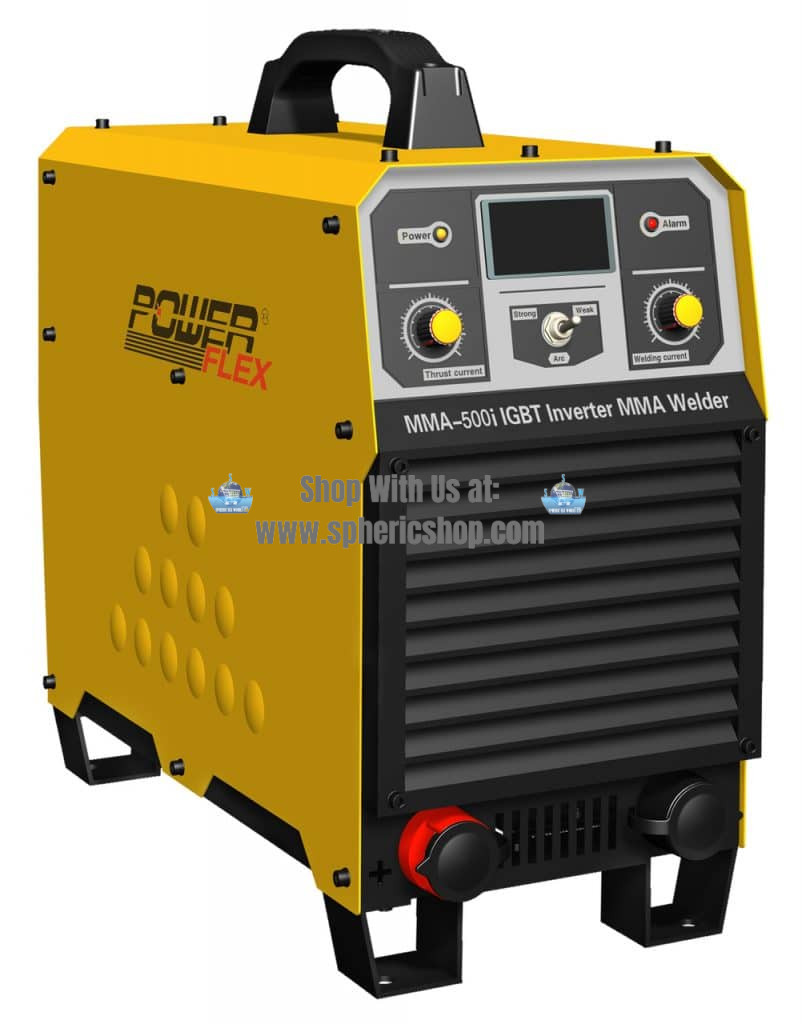

PowerFlex – Welding Machine – MMA-500i

The 3 phase 500i ampere Heavy duty DC MMA welding machine rectifier .
MMA 500 i is light weight, heavy duty welding machine suitable for continuos working with gauge 12, 10, 8 and 6 number welding electrodes with suitable welding cables that can extend up yo 50 meters. MMA 4001 is capable of welding both stainless steel (SS) and Mild steel (MS) with the finish minimum spatter.

Product Details

UOM

MMA-400i

MMA-500i

MMA-630i

Input Power Voltage (V)

415V ± 10%

415V ± 10%

415V ± 10%

Frequency (Hz)

50/60

50/60

50/60

Rated Input Current (A)

32

45

66

No-Load Voltage (V)

75

80

85

Current Adjsuting Range (A)

20-400

30-420

40-580

Duty Cycle (%)

60

60

60

Efficiency (%)

85

85

85

Other details is
weight 58kg
IGBT welding machines
Manual Metal Arc (MMA) welding aims for cleaner high quality welding at relatively lower cost
Manual Metal Arc (MMA) also known as Shielded metal arc welding (SMAW), also flux shielded arc welding also known as stick welding is the most flexible and one of the most widely used arc welding processes. It involves striking an arc between a covered metal electrode and a workpiece.
The heat of the arc melts the parent metal and the electrode which mix together to form, on cooling, a continuous solid mass. The central metal electrode or core wire acts as a consumable, providing the filler metal for the weld. MMA welding can be used to join most steels, stainless steels, cast irons and many non-ferrous materials. For many mild and high-strength carbon steels, it is the preferred joining method.
