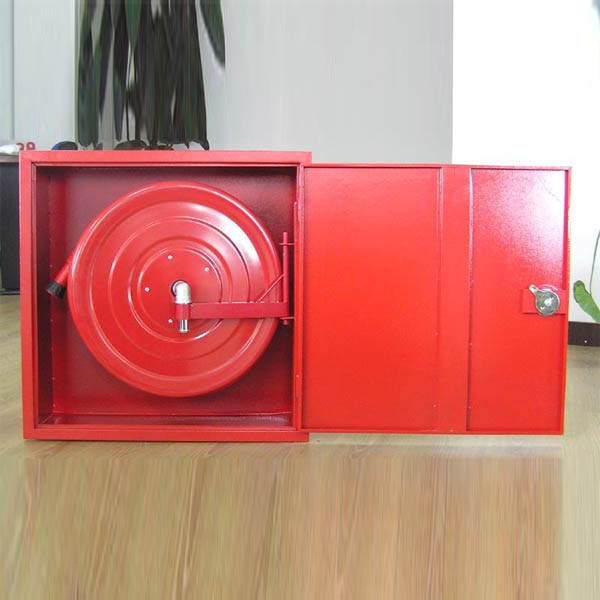

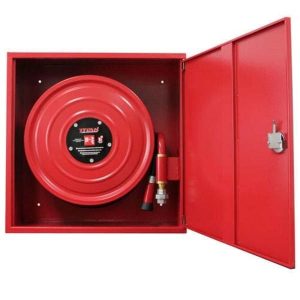

3/4 Fire Hose Reel

Fire hose reels provide a very effective firefighting facility with a continuous supply of water available immediately. The construction and performance of fire hose reel with semi-rigid hose ensures suitable installation in buildings and other construction works for use by the occupants. The fire hose reels are manufactured in both manual and automatic version.

The fire hose reels are capable of rotating in one plane (fixed type)or rotating in more than one plane with mounting on one of the following: swinging arm, swinging pipe or swinging door in manual and automatic version.
The automatic fire hose reels will open fully within 3 revolution of the reel.
The nozzle have SHUT, JET and SPRAY control settings
The minimum flow rate of hose reels in JET and SPRAY setting is 41 L/MIN. at 0.6 MPa (6 bar) pressure
Setting in chrome plated rotary nozzle is 53Lpm at 0.6 Mpa (6 bar) pressure.
The effective throw range of discharge at 0.2 MPa (2 bar) pressure is 10 mtrs. in JET setting.
The reel discs are painted RED with printed instructions to use label.
Operating Instructions

AUTOMATIC HOSE REELS
Pull out the hose and then water flow will start within 3 rotations.
Open nozzle; adjust to spray or jet as required.
Aim nozzle at base of fire.
After use, close the nozzle and rewind the hose, ensuring that it is properly wound around the hose reel (not overlapping side plates). Open the nozzle to drain water from the hose and then close the nozzle on completion.

MANUAL HOSE REELS
Open the main valve fully.
Pull out the hose.
Open nozzle, adjust to spray or jet as required.
Aim nozzle at base of fire.
After use, close the nozzle, turn off the main valve, rewind the hose, ensuring that it is properly wound around the hose reel (not overlapping the side plates). Open the nozzle to drain water from the hose and then close the nozzle on completion.
